K61 系列两爪通孔动力卡盘
发布时间:2009/9/15 12:53:04 共阅5715次
本产品适用于加工各种异型零件,可以根据用户要求提供各种卡爪

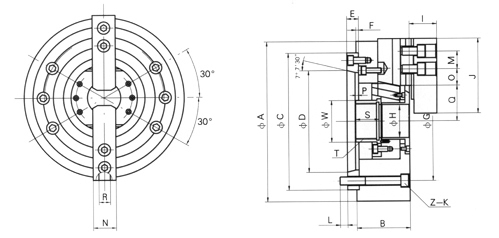

型号/规格 MODEL/SIZE |
A | B | C | D | E | F | G | H | I | J | z-k | L | M | N | O | P | Q | R | S | T | W | ||||
MAX | MIN | MAX | MIN | MAX | MIN | ||||||||||||||||||||
K61 | 160 | 165 | 75 | 140 | 82.563 | 15 | 5 | 104.8 | 32 | 35 | 78 | 6-M10 | 17 | 20 | 32 | 23 | 10 | 19 | 3 | 36 | 32.6 | 12 | 22 | M40X1.5 | 45 |
200 | 210 | 85 | 170 | 106.375 | 18 | 5 | 133.4 | 42 | 39 | 98 | 6-M12 | 17 | 25 | 36 | 28 | 13 | 23 | 4 | 48 | 44 | 15 | 28 | M50X2 | 56 | |
250 | 254 | 95 | 220 | 139.719 | 20 | 5 | 171.4 | 52 | 43 | 108 | 6-M16 | 20 | 30 | 40 | 35 | 15 | 28 | 4 | 57 | 52 | 17 | 30 | M60X2 | 69 |
型号/规格 MODEL/SIZE |
楔心套行程(mm) PLUNGER STROKE |
卡爪行程(直径) (mm) JAW STROKE (DIA) |
许用拉力 (kgf) MAX. PULL FORCE |
最大夹紧力(kgf) MAX.GRIPPING FORCE |
最高转速 (r.p.m) MAX. SPEED |
夹紧范围 (mm) CLAMPING RANGE |
撑紧范围 (mm) JAMMING RANGE |
配用油缸 MATCHING CYLINDER |
|
K61 | 160 | 16 | 6.8 | 1900 | 4800 | 4200 | (25-160) | (40-160) | P23110 |
200 | 19 | 8 | 2800 | 7000 | 3500 | (30-200) | (45-200) | P23125 | |
250 | 24 | 10 | 3600 | 9000 | 2800 | (40-250) | (60-250) | P23145 |
